AC disconnect switches are essential safety components for residential and light commercial air conditioning systems. They provide a safe way to shut off power to AC equipment, prevent electrical hazards, simplify maintenance and repairs, and help comply with electrical codes. MASFRIO AC disconnect switches are built for heavy‑duty use, reliable performance, and easy installation for homeowners, technicians, and small businesses.

What Are AC Disconnect Switches

    AC disconnect switches are dedicated electrical devices that safely cut power to air conditioning units. They protect people and equipment during service, troubleshooting, or emergencies. MASFRIO PCDS and PDB series are widely used in residential and light commercial AC systems, and also compatible with heat pumps, swimming pools, spas, whirlpools, pump houses, and electric water heaters.

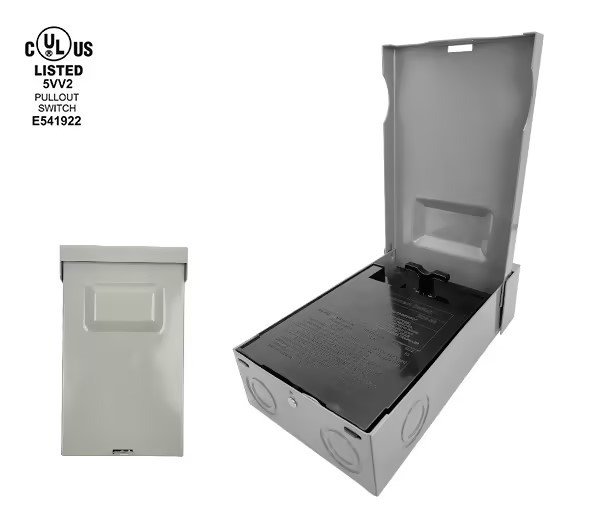

    These switches are engineered for high-power AC applications. Standard ratings include 30A 240V and 60A 240V, with 3‑wire configurations to match different system needs. They come in metallic NEMA 3R enclosures for outdoor use, resisting rain, dust, and environmental corrosion.

    User and safety features include:

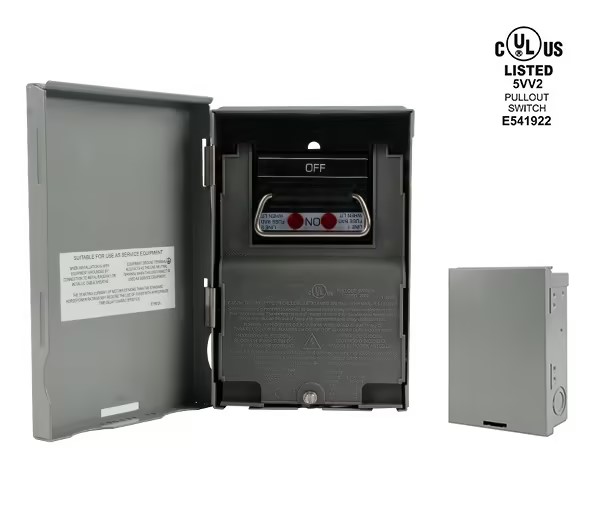

    1. Removable high‑strength shield and front cover for fast maintenance access

    2. Copper‑rated line and load lugs for stable conductivity and low heat loss

    3. Ample wiring space and stud gun mounting for flexible, faster installation

    4. Padlock‑able door to prevent accidental operation and tampering

    5. Factory‑installed tamper‑resistant and weather‑resistant GFCI receptacles

    Electrical specifications support wire sizes #14–10, #6–4, and #2 AWG. Torque values are calibrated for secure, code‑compliant wiring. All models meet NFPA 70 requirements and must be installed by a licensed electrician.

Where Are AC Disconnect Switches Used

    AC disconnect switches are required in most residential and light commercial AC installations.

Residential

    Installed near outdoor central air conditioners, heat pumps, or window units. They allow safe power shutoff before maintenance or in case of malfunction, as required by electrical codes.

Light Commercial

    Used in small offices, retail spaces, and light industrial facilities with larger AC systems. Higher‑capacity models ensure safety for staff, customers, and service technicians.

Why AC Disconnect Switches Are Essential

    1. Electrical codes require AC disconnect switches for residential and light commercial cooling systems.

    2. Prevent electric shock: Fully de-energize equipment before any work on high‑voltage AC units

    3. Protect equipment: Quickly shut off power during surges or short circuits to avoid costly damage

    4. Speed up emergency response: Immediate power cut if a unit malfunctions, overheats, or risks fire

How to Choose and Maintain AC Disconnect Switches

Choose the Right Rating

    Match voltage and current to your AC unit. 240V 30A is common for residential use; light commercial systems may need 60A or higher. Always check your unit’s specifications.

Install Properly

    Mount within 50 feet of the AC unit, at an accessible height. Ensure correct grounding. Use a licensed electrician for safe, code‑compliant installation.

Perform Regular Maintenance

    Inspect annually for corrosion, damage, or loose connections. Clean the enclosure and test on/off function. Replace the switch at the first sign of wear or failure.

Frequently Asked Questions

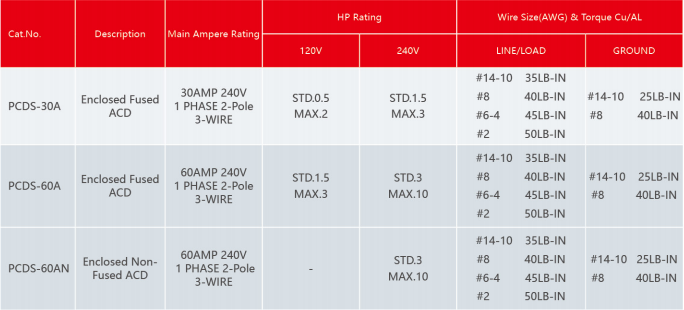

    What amp and voltage ratings are available

    MASFRIO AC disconnect switches come in 30A 240V and 60A 240V with 3‑wire configurations for broad system compatibility.

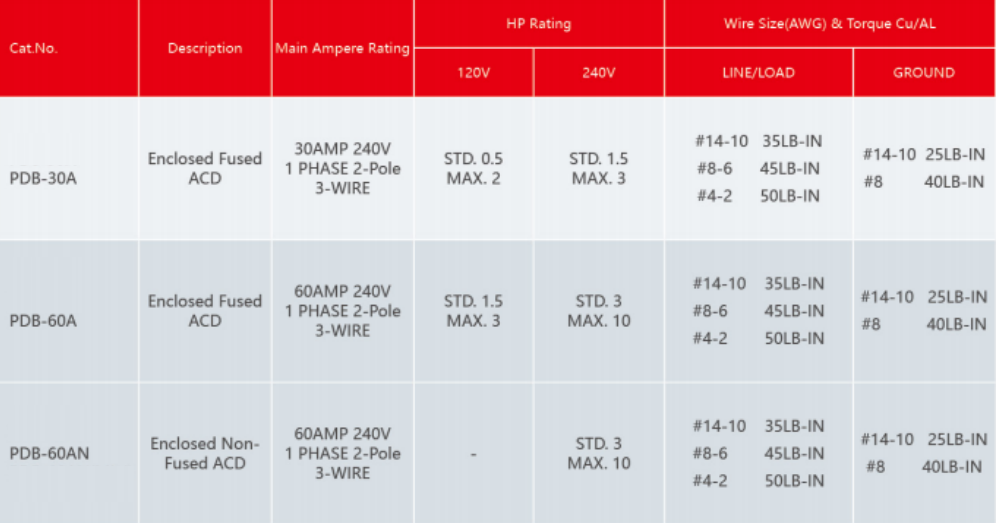

    What wire sizes and torque values are recommended

    Compatible wire sizes: #14–10, #6–4, #2 AWG. Torque specs: 35LB‑IN, 45LB‑IN, 50LB‑IN for line/load terminals; 25LB‑IN and 40LB‑IN for ground terminals.

    Can the switch door be locked

    Yes, the door supports padlocking to prevent accidental use and unauthorized tampering for improved jobsite safety.

    What features make installation easier

    Easy‑remove protective cover, generous wiring space, and stud gun mounting support speed up installation while maintaining reliability.
