When it comes to residential and light commercial air conditioning systems, safety is non-negotiable—and AC disconnect switches stand as the role that safeguards both your equipment and your property. These essential electrical components are designed to provide a secure way to shut off power to AC units, preventing electrical hazards, simplifying maintenance, and ensuring compliance with industry standards. Whether you’re a homeowner, HVAC technician, or small business owner, understanding the role of AC disconnect switches is critical for maintaining a safe and efficient AC system.

What Are AC Disconnect Switches?

AC disconnect switches are specialized electrical devices that cut off the power supply to an AC unit quickly and safely—an essential function for protecting both people and equipment. MASFRIO core models include PCDS & PDB series Air Conditioning Disconnect Switches, the most widely used solutions for residential and light commercial AC systems, also compatible with heat pumps, swimming pools, spas, whirlpools, pump houses and electric water heater servicing.

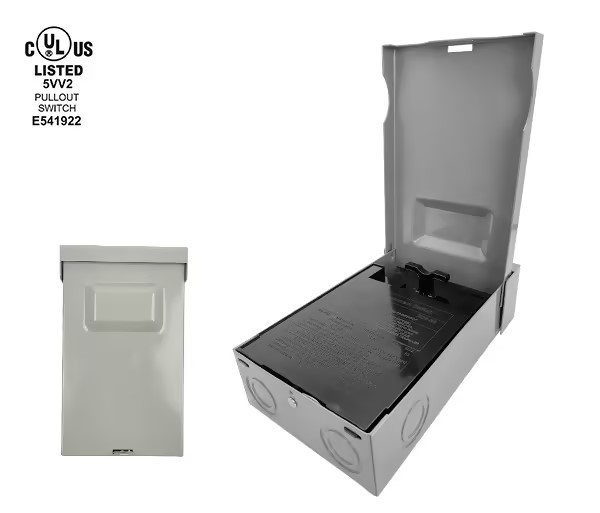

Unlike standard low-voltage household switches, MASFRIO AC disconnect switches are professionally engineered for heavy-duty AC power demands, covering 30AMP 240V and 60AMP 240V standard ratings, with 3-wire configuration available to match diverse system needs. We offer metallic enclosures with NEMA 3R outdoor rating, delivering reliable protection against rain, dust and outdoor environmental erosion for exterior AC units.

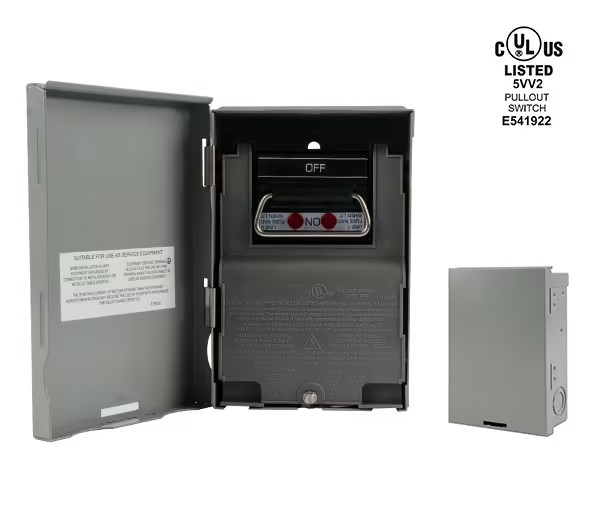

The product is built with user-centric and safety-focused details: it comes with an easy-to-remove high-strength protective shield and front cover for fast maintenance access; equipped with copper-rated line and load lugs to ensure stable conductive connection and reduce heat loss; designed with ample wiring space that supports stud gun mounting for faster, more flexible installation. For enhanced security, it features a padlock-able door provision to prevent accidental operation and malicious tampering, and is pre-installed with tamper resistant/weather-resistant ground fault receptacles at the factory, eliminating extra assembly steps and improving safety performance.

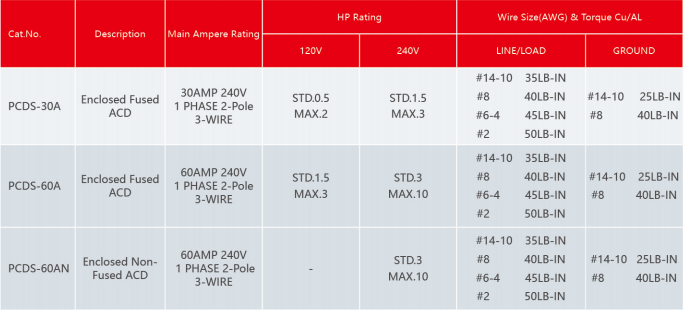

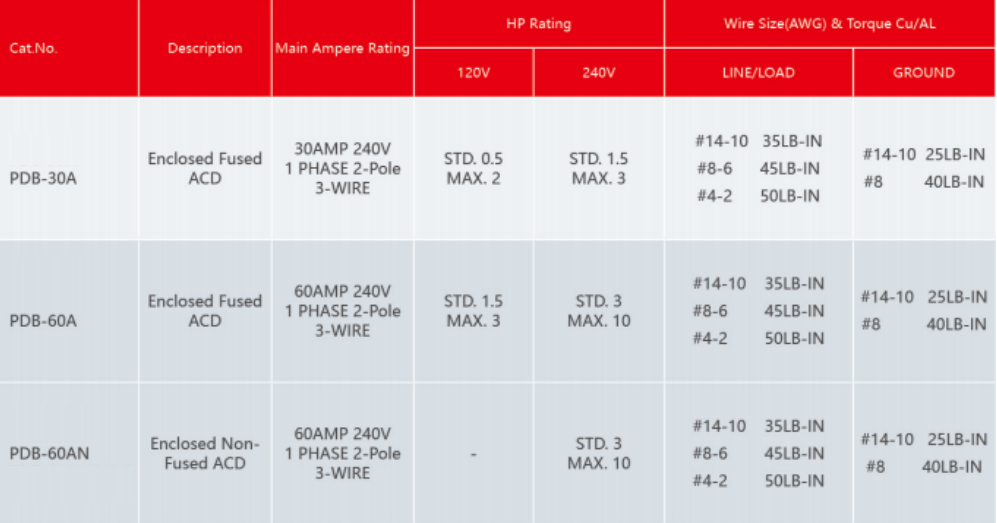

In terms of electrical specifications, MASFRIO switches support standard wire sizes from #14-10, #6-4 to #2 AWG, with calibrated torque values (35LB-IN, 45LB-IN, 50LB-IN for line/load terminals; 25LB-IN, 40LB-IN for ground terminals) to ensure compliant and secure wiring. All models fully meet the requirements of NFPA 70, and must be installed by qualified licensed electricians to guarantee operational safety.

Where Are AC Disconnect Switches Used?

AC disconnect switches are a mandatory component in nearly all residential and light commercial AC setups, with specific use cases tailored to each environment:

Residential Settings: Installed near outdoor central AC units, heat pumps, or window AC systems, they provide homeowners and technicians with a safe way to cut power before performing maintenance or in the event of a malfunction. They are also required by electrical codes to prevent accidental power flow during repairs.

Light Commercial Spaces: Used in small businesses, offices, retail stores, and light industrial facilities with AC systems. These settings often have larger AC units, and MASFRIO disconnect switches are rated to handle higher currents, ensuring safety for employees, customers, and service personnel.

Why AC Disconnect Switches Are Non-Negotiable

Electrical codes mandate the use of AC disconnect switches for residential and light commercial AC systems.

First, they prevent electrical shock. AC units operate at high voltages, and working on a live unit can be fatal. A disconnect switch ensures that power is fully shut off before any maintenance or repairs.

Second, they protect equipment from damage. In the event of a power surge or short circuit, a disconnect switch can shut off power quickly, preventing costly damage to the AC compressor, fan, or other components.

Third, they simplify emergency response. If an AC unit catches fire or malfunctions, a disconnect switch allows you to cut power immediately, minimizing risk.

Choosing & Maintaining Your AC Disconnect Switch

To get the most out of your AC disconnect switch, follow these technical guidelines:

Choose the Right Rating: Select a switch with a voltage and current rating that matches your AC unit. For residential ACs, 240V/30A switches are common; light commercial units may require 480V/60A switches. Always check your AC unit’s specifications before purchasing.

Install Properly: Mount the switch within 50 feet of the AC unit and at a height that is easily accessible. Ensure it is grounded correctly to prevent electrical hazards. We recommend hiring a licensed electrician for installation.

Regular Maintenance: Inspect the switch annually for signs of corrosion, damage, or loose connections. Clean the enclosure to remove dirt and debris, and test the on/off function to ensure it operates smoothly. Replace the switch if it shows signs of wear or failure.

FAQ

What ampere and voltage ratings do these products support?

MASFRIO switches are available in 30AMP 240V and 60AMP 240V standard ratings, with 3-wire configurations for flexible system matching.

What are the wire size and torque requirements for line/load/ground terminals?

Compatible wire sizes include #14–10, #6–4, #2 AWG. Torque specs: 35/45/50 LB-IN for line/load; 25/40 LB-IN for ground, ensuring stable, code-compliant wiring.

Can the switch door be locked? What is the benefit?

The door supports padlock-able provision, preventing accidental operation and unauthorized tampering for higher job-site safety.

What accessories or structural features simplify installation?

Features include easy-to-remove protective shield & front cover, ample wiring space, and compatibility with stud gun mounting to speed up installation.
