A compact surge suppressor offering better surge protection levels.
Maximum Surge Current: 50kA
Voltage Rating: 120/240V AC

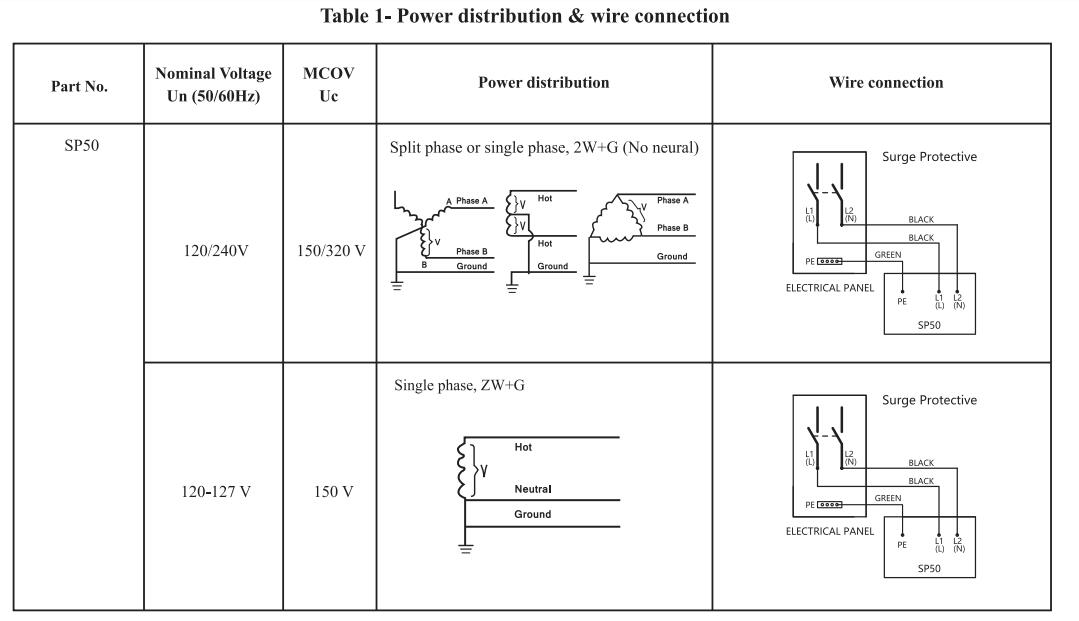

Configuration: 1-phase, 3-wire (isolated ground)
Enclosure Rating: NEMA 4X, suitable for various environments
Certification | ANSI/UL1449 4th, Type 1 SP |
Connection Type | Parallel Connected |
Ports | 1 |
Surge capacity per phase | 50 kA |
Nominal discharge current (In) | 10 kA |
Short-circuit current rating (SCCR) | 200kArms |
Power Status Indication | Normal= GREEN LED ON |
Working Status Indication | Fail=LED Off |
Power Connecting | #12 AWG, 450mm (18.00") length L (or N)=black; PE=green |
Working environments | Temperature -40°C~+75°C, Humidity relanve 5~95% (25°C), Altitudes≤3km |
Dimensions, W x D x H | 88.1 x47.8x 88.2 |
Enclosure | Plastic enclosure, NEMA 4X |
